Summit Platforms - Telehandler hire

Working Height4.78m Max lift capacity2600kg Length to front carriage3.60m Mast tilt forwards18 Mast tilt backwards10 Max lift2.6t Weight5,910 kg

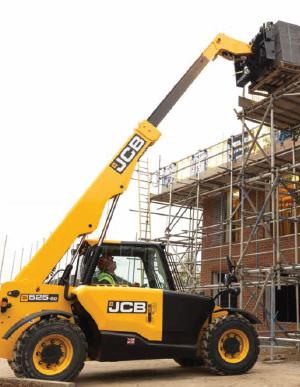

JCB 525-60 (6M)

Working Height6.00m Max lift capacity2500kg Lift capacity at max height1750kg Lift capacity at max reach800kg Max forward reach3.5m Reach at max height-0.15m Overall width (over tyres)1.84m Weight5490kg

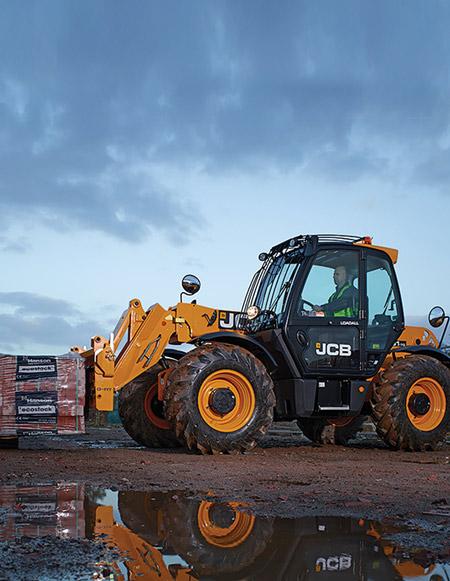

JCB 531-70 (7M)

Working Height7.0m Max lift capacity3100kg Lift capacity at max height2400kg Lift capacity at max reach1250m Max forward reach3.70m Reach at max height0.54m Overall width (over tyres)2.23m Weight7,060 kg

JCB 535-95 (9M)

Working Height9.50m Max lift capacity3500kg Lift capacity at max height1600kg Lift capacity at max reach500m Max forward reach6.52m Reach at max height2.49m Overall width (over tyres)2.29m Weight8,215 kg

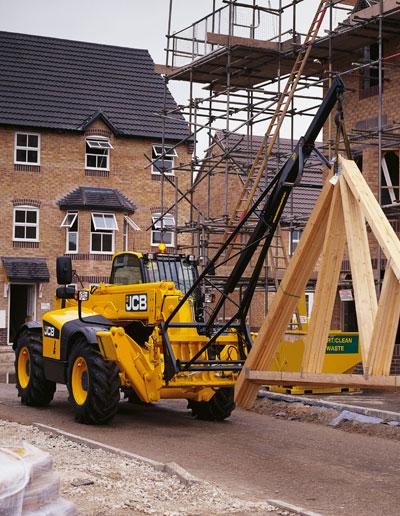

JCB 533-105 (10M)

Working Height10.50m Max lift capacity3300kg Lift capacity at max height2500kg Lift capacity at max reach1000kg Max forward reach6.83m Reach at max height1.99m Overall width (over tyres)2.29m Weight8850kg

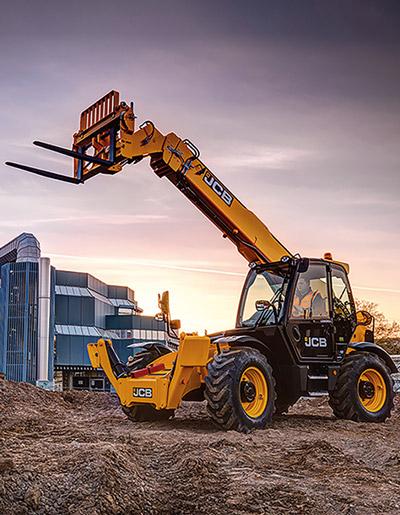

JCB 535-125 (12M)

Working Height12.07m Max lift capacity3500kg Lift capacity at max height1150kg Lift capacity at max reach1350m Max forward reach8.06m Reach at max height0.54m Overall width (over tyres)2.35m Weight10,066 kg

JCB 540-140 (14M)

Working Height13.78m Max lift capacity4000kg Lift capacity at max height3000kg Lift capacity at max reach1250m Max forward reach9.64m Reach at max height1.01m Overall width (over tyres)2.35m Weight10,880 kg

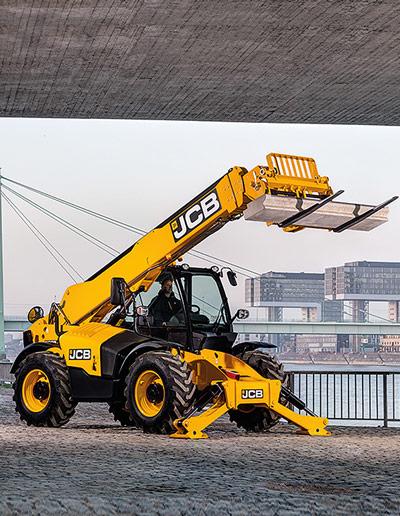

JCB 540-170 (17M)

Working Height16.70m Max lift capacity4000kg Lift capacity at max height2500kg Lift capacity at max reach800m Max forward reach12.50m Reach at max height1.97m Overall width (over tyres)2.44m Weight12,060 kg

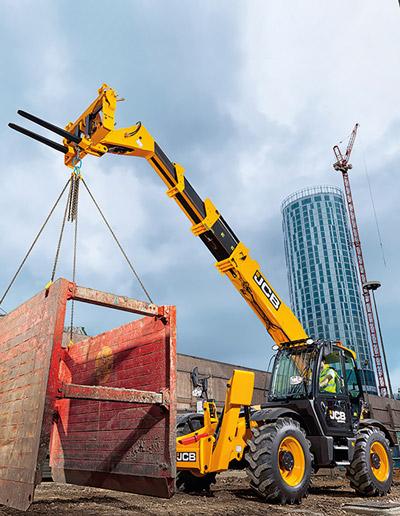

JCB 540-180 (18M)

Working Height17.51m Max lift capacity4000kg Lift capacity at max height2500kg Lift capacity at max reach550m Max forward reach13.34m Reach at max height1.88m Overall width (over tyres)2.35m Weight11,380 kg

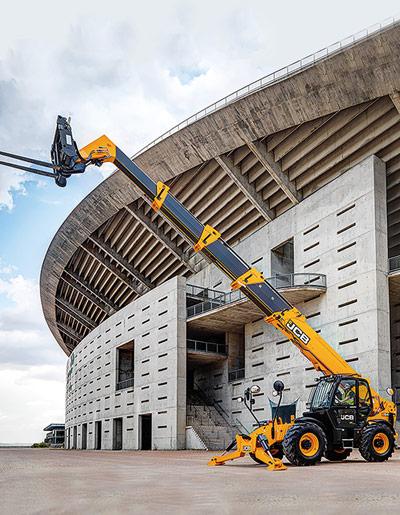

JCB 540-200 (20M)

Working Height20.0m Max lift capacity4000kg Lift capacity at max height1500kg Lift capacity at max reach200m Max forward reach15.90m Reach at max height2.82m Overall width (over tyres)2.44m Weight12,985 kg
